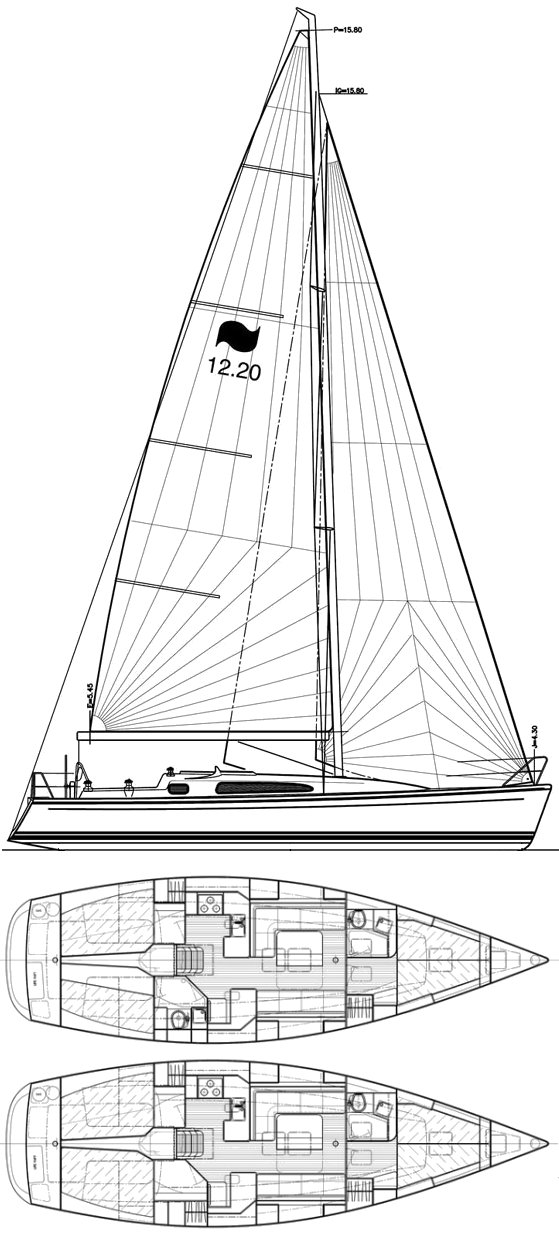

The Winner 1220 is a 40.03ft fractional sloop designed by Cees van Tongeren and built in fiberglass by Winner Yachts since 2009.
The Winner 1220 is a light sailboat which is a high performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally small. There is a short water supply range.
Main features
| Model | Winner 1220 | ||
| Length | 40.03 ft | ||
| Beam | 12.30 ft | ||
| Draft | 7.05 ft | ||
| Country | The Nederlands (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.70 | ||
| Ballast / displ. | 41.89 % | ||
| Displ. / length | 183.35 | ||
| Comfort ratio | 24.83 | ||
| Capsize | 1.94 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 34.12 ft | ||
| Maximum draft | 7.05 ft | ||
| Displacement | 16314 lbs | ||
| Ballast | 6834 lbs | ||
| Hull speed | 7.83 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 829 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 365.73 sq.ft | ||
| Sail area main | 463.45 sq.ft | ||
| I | 51.84 ft | ||
| J | 14.11 ft | ||
| P | 51.84 ft | ||
| E | 17.88 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 40 gals |
Accommodations
| Water capacity | 92 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Winner Yachts | ||
| Designer | Cees van Tongeren | ||
| First built | 2009 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
