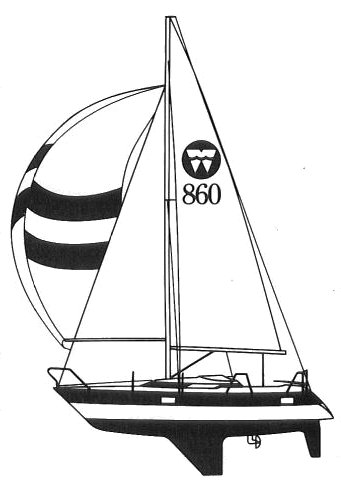

The Winga 860 is a 28.28ft fractional sloop designed by Rolf Eliasson and built in fiberglass by Winga Marin between 1979 and 1983.
100 units have been built.
The Winga 860 is a moderate weight sailboat which is a reasonably good performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Winga 860 | ||
| Length | 28.28 ft | ||
| Beam | 9.58 ft | ||
| Draft | 4.92 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.15 | ||
| Ballast / displ. | 38.68 % | ||
| Displ. / length | 265.19 | ||
| Comfort ratio | 18.59 | ||
| Capsize | 2.15 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 21.25 ft | ||
| Maximum draft | 4.92 ft | ||
| Displacement | 5700 lbs | ||
| Ballast | 2205 lbs | ||
| Hull speed | 6.18 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 341 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 164.53 sq.ft | ||
| Sail area main | 177.45 sq.ft | ||
| I | 30.84 ft | ||
| J | 10.67 ft | ||
| P | 31.83 ft | ||
| E | 11.15 ft |
Engine
| Nb engines | 1 | ||
| Total power | 9.50 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Winga Marin | ||
| Designer | Rolf Eliasson | ||
| First built | 1979 | ||
| Last built | 1983 | ||
| Number built | 100 |
