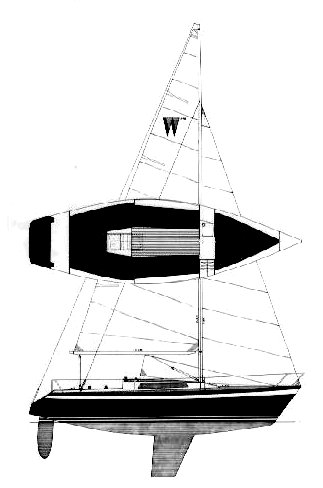

The Wasa 270 is a 27.21ft fractional sloop designed by Leif Ängermark and built in fiberglass by Wasa Yachts since 1982.
The Wasa 270 is a light sailboat which is a good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Wasa 270 | ||
| Length | 27.21 ft | ||
| Beam | 8.36 ft | ||
| Draft | 5.41 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 19.75 | ||
| Ballast / displ. | 47.62 % | ||
| Displ. / length | 157.05 | ||
| Comfort ratio | 17.12 | ||
| Capsize | 2.01 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 23.61 ft | ||
| Maximum draft | 5.41 ft | ||
| Displacement | 4630 lbs | ||
| Ballast | 2205 lbs | ||
| Hull speed | 6.51 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 342 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 140.32 sq.ft | ||
| Sail area main | 201.23 sq.ft | ||
| I | 28.52 ft | ||
| J | 9.84 ft | ||
| P | 32.30 ft | ||
| E | 12.46 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Wasa Yachts | ||
| Designer | Leif Ängermark | ||
| First built | 1982 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
