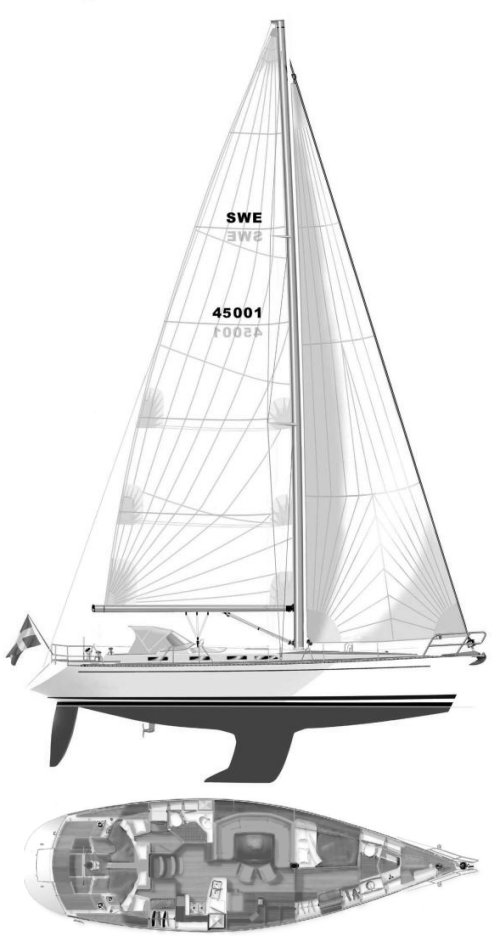

The Sweden yachts 45 is a 46.42ft masthead sloop designed by Peter Norlin / Jens Östmann and built in fiberglass by Sweden Yachts since 2000.
The Sweden yachts 45 is a moderate weight sailboat which is a high performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is average. There is a good water supply range.
Main features
| Model | Sweden yachts 45 | ||
| Length | 46.42 ft | ||
| Beam | 13.71 ft | ||
| Draft | 7.55 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.01 | ||
| Ballast / displ. | 41.94 % | ||
| Displ. / length | 205.10 | ||
| Comfort ratio | 31.34 | ||
| Capsize | 1.82 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 39.04 ft | ||
| Maximum draft | 7.55 ft | ||
| Displacement | 27337 lbs | ||
| Ballast | 11464 lbs | ||
| Hull speed | 8.37 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 1130.21 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 519.18 sq.ft | ||
| Sail area main | 573.18 sq.ft | ||
| I | 59.71 ft | ||
| J | 17.39 ft | ||
| P | 58.25 ft | ||
| E | 19.68 ft |
Engine
| Nb engines | 1 | ||
| Total power | 75 HP | ||
| Fuel capacity | 75 gals |
Accommodations
| Water capacity | 115 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Sweden Yachts | ||
| Designer | Peter Norlin / Jens Östmann | ||
| First built | 2000 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
