The Sunwind 31 is a 30.64ft fractional sloop designed by Tord Sundén and built in fiberglass between 1977 and 1983.
The Sunwind 31 is a moderate weight sailboat which is a reasonably good performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | Sunwind 31 | ||
| Length | 30.64 ft | ||
| Beam | 9.51 ft | ||
| Draft | 5.41 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.03 | ||
| Ballast / displ. | 39.48 % | ||
| Displ. / length | 277.75 | ||
| Comfort ratio | 24.94 | ||
| Capsize | 1.88 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 23.79 ft | ||
| Maximum draft | 5.41 ft | ||
| Displacement | 8377 lbs | ||
| Ballast | 3307 lbs | ||
| Hull speed | 6.54 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt

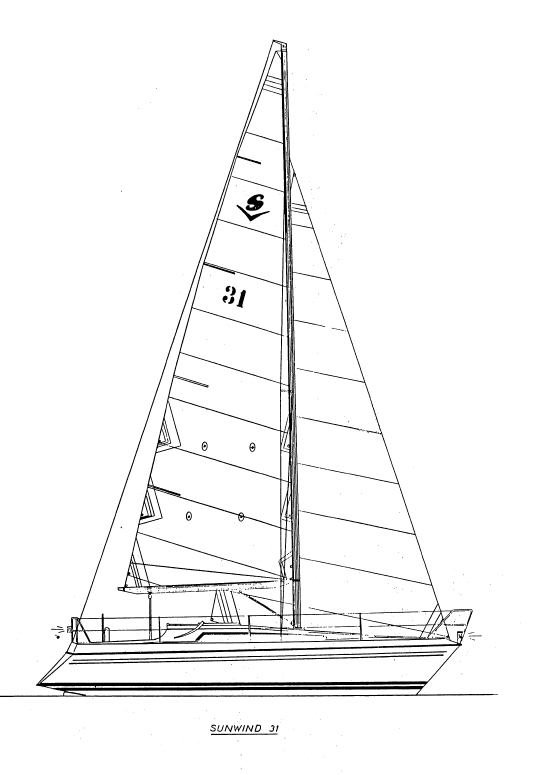

Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 412 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 183.62 sq.ft | ||
| Sail area main | 228.05 sq.ft | ||
| I | 34.45 ft | ||
| J | 10.66 ft | ||
| P | 37.57 ft | ||
| E | 12.14 ft |
Engine
| Nb engines | 1 | ||
| Total power | 18 HP | ||
| Fuel capacity | 5 gals |
Accommodations
| Water capacity | 26 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Tord Sundén | ||
| First built | 1977 | ||
| Last built | 1983 | ||
| Number built | 0 | ?? |
