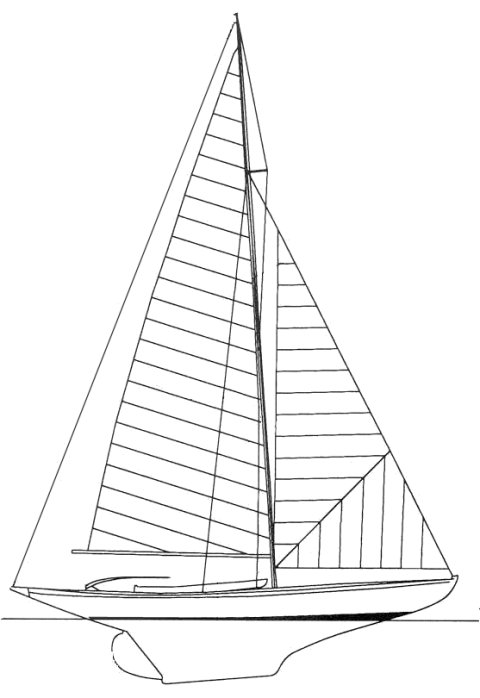

The Sunbeam one design is a 26.58ft fractional sloop designed by Alfred Westmacott and built in wood since 1922.
44 units have been built.
The Sunbeam one design is a very heavy sailboat which is under powered. It is not stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat.
Main features
| Model | Sunbeam one design | ||
| Length | 26.58 ft | ||
| Beam | 6 ft | ||
| Draft | 3.74 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.66 | ||
| Ballast / displ. | 28.79 % | ||
| Displ. / length | 550.94 | ||
| Comfort ratio | 46.42 | ||
| Capsize | 1.28 |
Hull
| Hull type | Monohull fin keel | ||
| Construction | Wood | ||
| Waterline length | 17.50 ft | ||
| Maximum draft | 3.74 ft | ||
| Displacement | 6614 lbs | ||
| Ballast | 1904 lbs | ||
| Hull speed | 5.61 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 300 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Alfred Westmacott | ||
| First built | 1922 | ||
| Last built | 0 | ?? | |
| Number built | 44 |
