The Stadtship 56 is a 56.1ft fractional sloop designed by Van de Stadt Design and built in aluminum by KM Yachtbuilders since 2005.

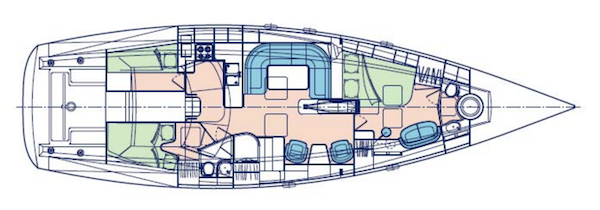

It accomodates 8 people in 3 cabins plus salon.
The Stadtship 56 is a light sailboat which is a high performer. It is reasonably stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is excellent. There is an excellent water supply range.
Main features
| Model | Stadtship 56 | ||
| Length | 56.10 ft | ||
| Beam | 16.57 ft | ||
| Draft | 2.62 ft | ||
| Country | The Nederlands (Europe) | ||
| Estimated price | $ 0 | ?? |
Merrimac sailing at 10+ knots
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 21.72 | ||
| Ballast / displ. | 34.54 % | ||
| Displ. / length | 149.72 | ||
| Comfort ratio | 33.28 | ||
| Capsize | 1.82 |
Hull
| Hull type | Monohull lifting keel | ||
| Construction | Aluminum | ||
| Waterline length | 52.49 ft | ||
| Maximum draft | 10.33 ft | ||
| Displacement | 48501.64 lbs | ||
| Ballast | 16755.11 lbs | ||
| Hull speed | 9.71 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 1797.57 sq.ft | ||
| Air draft | 80.71 ft | ||
| Sail area fore | 810.41 sq.ft | ||
| Sail area main | 973.27 sq.ft | ||
| I | 78.41 ft | ||
| J | 20.67 ft | ||
| P | 74.15 ft | ||
| E | 26.25 ft |
Engine
| Nb engines | 1 | ||
| Total power | 110 HP | ||
| Fuel capacity | 291 gals |
Accommodations
| Water capacity | 396 gals | ||
| Headroom | 6.73 ft | ||
| Nb of cabins | 3 | ||
| Nb of berths | 8 | ||
| Nb heads | 2 |
Builder data
| Builder | KM Yachtbuilders | ||
| Designer | Van de Stadt Design | ||
| First built | 2005 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
