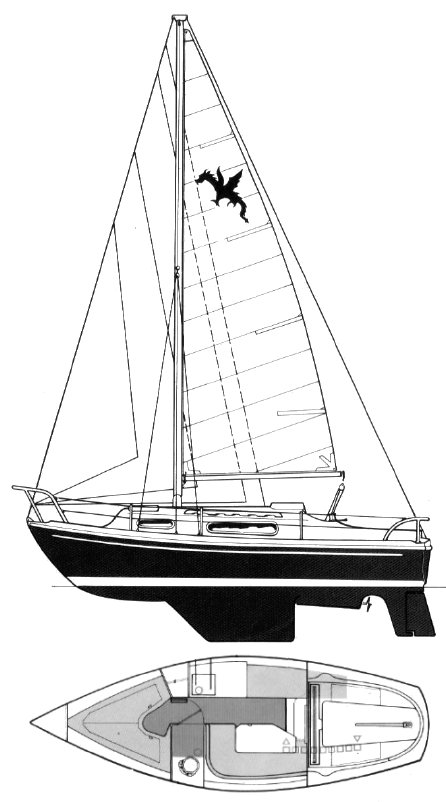

The Snapdragon 747 is a 24.5ft masthead sloop designed by Thames Structural Plastics/Thames Marine and built in fiberglass by Thames Marine (UK) since 1964.
The Snapdragon 747 is a light sailboat which is under powered. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Snapdragon 747 | ||
| Length | 24.50 ft | ||
| Beam | 8 ft | ||
| Draft | 2.50 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 0 | ?? | |
| Ballast / displ. | 41.89 % | ||
| Displ. / length | 191.73 | ||
| Comfort ratio | 16.51 | ||
| Capsize | 2.07 |
Hull
| Hull type | Monohull twin Keel | ||
| Construction | Fiberglass | ||
| Waterline length | 20.50 ft | ||
| Maximum draft | 2.50 ft | ||
| Displacement | 3700 lbs | ||
| Ballast | 1550 lbs | ||
| Hull speed | 6.07 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 0 sq.ft | ?? | |
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Thames Marine (UK) | ||
| Designer | Thames Structural Plastics/Thames Marine | ||
| First built | 1964 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
