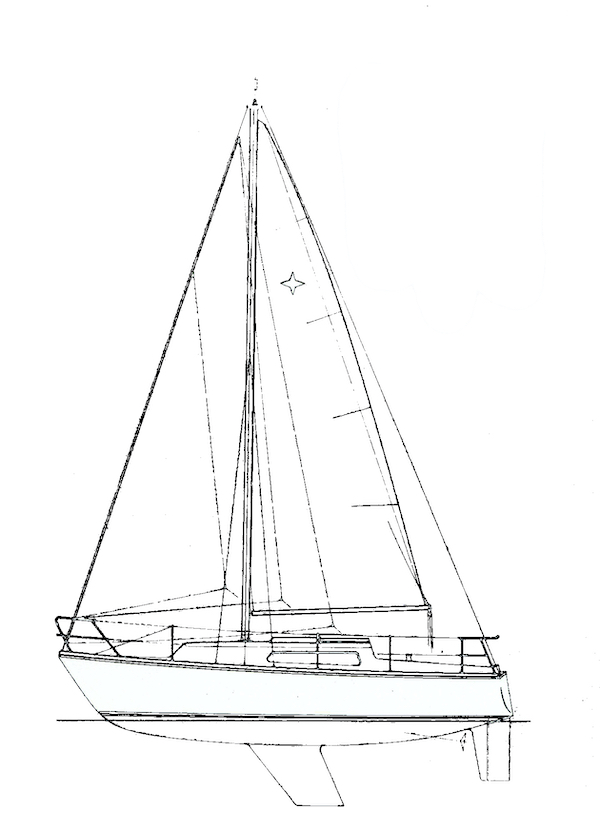

The Sirius 23 is a 23.29ft masthead sloop designed by K. Schröter Travenünde and built in fiberglass by Sirius -Werft GmbH since 0.0.
The Sirius 23 is a light sailboat which is a high performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat. There is a very short water supply range.
Main features
| Model | Sirius 23 | ||
| Length | 23.29 ft | ||
| Beam | 8.20 ft | ||
| Draft | 4.10 ft | ||
| Country | Germany (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.76 | ||
| Ballast / displ. | 35 % | ||
| Displ. / length | 154.74 | ||
| Comfort ratio | 11.94 | ||
| Capsize | 2.37 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 19.69 ft | ||
| Maximum draft | 4.10 ft | ||
| Displacement | 2646 lbs | ||
| Ballast | 926 lbs | ||
| Hull speed | 5.95 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 247.57 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 8 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 13 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Sirius -Werft GmbH | ||
| Designer | K. Schröter Travenünde | ||
| First built | 0 | ?? | |
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
