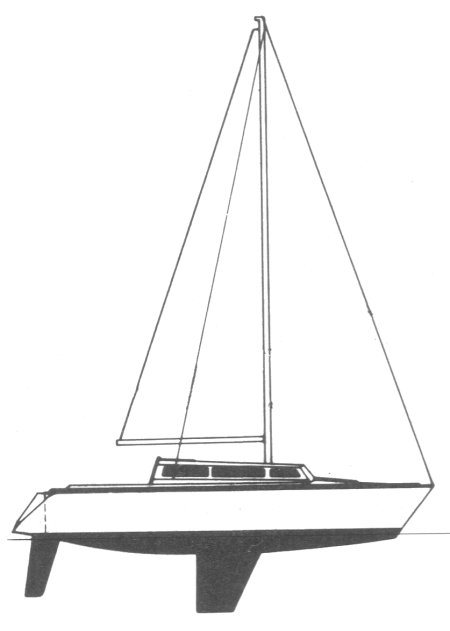

The Show 27 is a 27.5ft masthead sloop designed by Delio Barberis/Lanfranco Soma and built in fiberglass by Barberis (Cantieri) since 1978.
The Show 27 is a light sailboat which is a good performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Show 27 | ||
| Length | 27.50 ft | ||
| Beam | 9.67 ft | ||
| Draft | 5.50 ft | ||
| Country | Italy (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.97 | ||
| Ballast / displ. | 35.83 % | ||
| Displ. / length | 167.70 | ||
| Comfort ratio | 12.73 | ||
| Capsize | 2.44 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 22 ft | ||
| Maximum draft | 5.50 ft | ||
| Displacement | 4000 lbs | ||
| Ballast | 1433 lbs | ||
| Hull speed | 6.29 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 298 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 160.32 sq.ft | ||
| Sail area main | 126.97 sq.ft | ||
| I | 31.04 ft | ||
| J | 10.33 ft | ||
| P | 27.16 ft | ||
| E | 9.35 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Barberis (Cantieri) | ||
| Designer | Delio Barberis/Lanfranco Soma | ||
| First built | 1978 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
