Oyster 745
The Oyster 745 is a 74.61ft fractional sloop designed by Rob Humphreys and built in fiberglass by Oyster Marine since 2014.
It accomodates 10 people in 5 cabins plus salon.
The Oyster 745 is a light sailboat which is a high performer. It is not stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat. The fuel capacity is excellent. There is an excellent water supply range.
Oyster 745 for sale elsewhere on the web:
Main features
| Model | Oyster 745 | ||
| Length | 74.61 ft | ||
| Beam | 19.39 ft | ||
| Draft | 10.17 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
Login or register to personnalize this screen.
You will be able to pin external links of your choice.
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.29 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 181.30 | ||
| Comfort ratio | 50.51 | ||
| Capsize | 1.59 |
Hull
| Hull type | Monohull fin keel with bulb and dual rudders | ||
| Construction | Fiberglass | ||
| Waterline length | 65.85 ft | ||
| Maximum draft | 10.17 ft | ||
| Displacement | 115962 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 10.87 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 3000 sq.ft | ||
| Air draft | 110.60 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 247 HP | ||
| Fuel capacity | 528 gals |
Accommodations
| Water capacity | 396 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 5 | ||
| Nb of berths | 10 | ||
| Nb heads | 4 |
Builder data
| Builder | Oyster Marine | ||
| Designer | Rob Humphreys | ||
| First built | 2014 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |

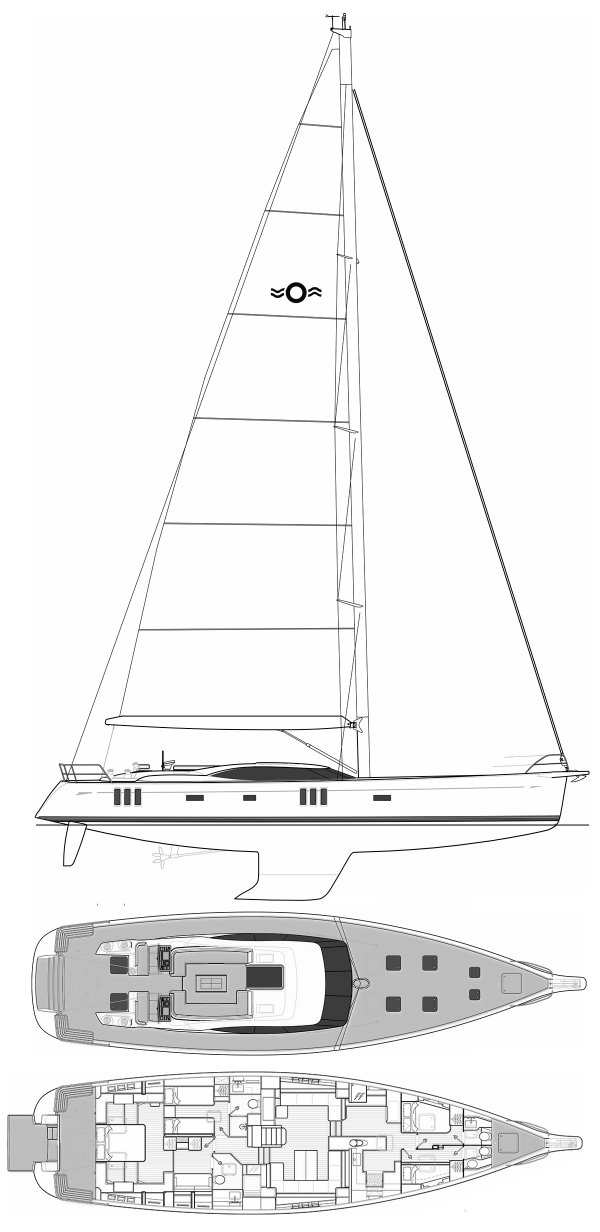

Other photos
