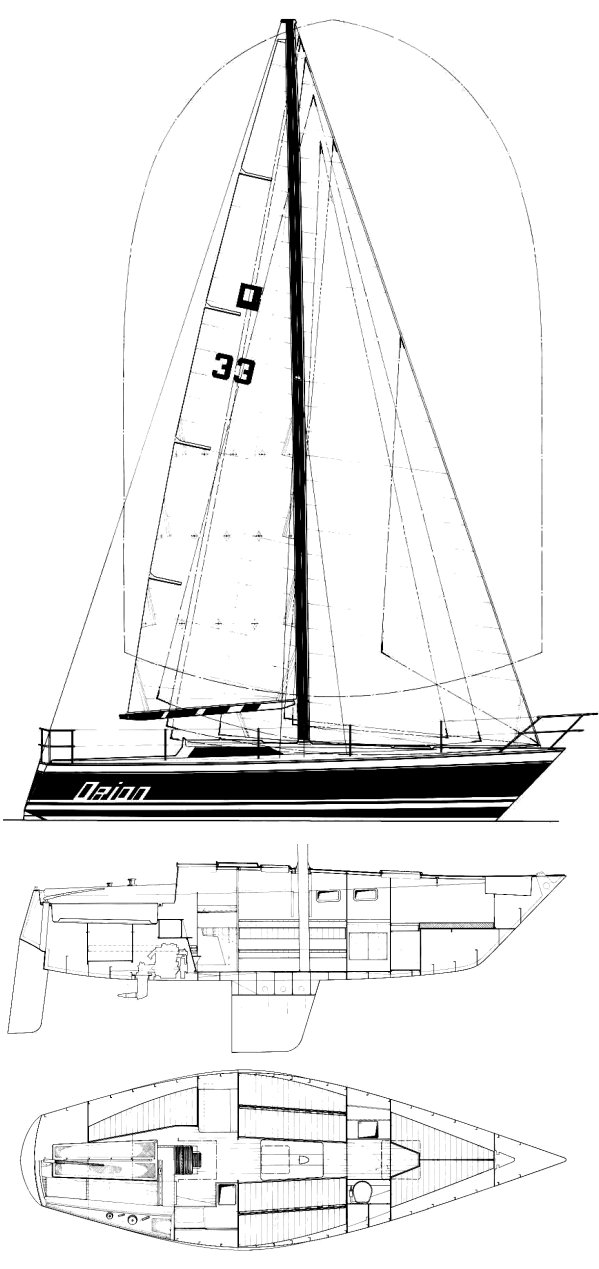

The Orion 33 is a 32.81ft masthead sloop designed by Van de Stadt and built in fiberglass by Huisman (Royal Huisman Shipyard) since 1976.
The Orion 33 is a moderate weight sailboat which is a reasonably good performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser.
Main features
| Model | Orion 33 | ||
| Length | 32.81 ft | ||
| Beam | 10.83 ft | ||
| Draft | 6.17 ft | ||
| Country | The Nederlands (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 16.09 | ||
| Ballast / displ. | 48.78 % | ||
| Displ. / length | 259.83 | ||
| Comfort ratio | 26.31 | ||
| Capsize | 1.91 |
Hull
| Hull type | Monohull fin keel with spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 27.23 ft | ||
| Maximum draft | 6.17 ft | ||
| Displacement | 11751 lbs | ||
| Ballast | 5732 lbs | ||
| Hull speed | 6.99 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 518 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 312.47 sq.ft | ||
| Sail area main | 205.88 sq.ft | ||
| I | 44.29 ft | ||
| J | 14.11 ft | ||
| P | 39.86 ft | ||
| E | 10.33 ft |
Engine
| Nb engines | 1 | ||
| Total power | 23 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Huisman (Royal Huisman Shipyard) | ||
| Designer | Van de Stadt | ||
| First built | 1976 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
