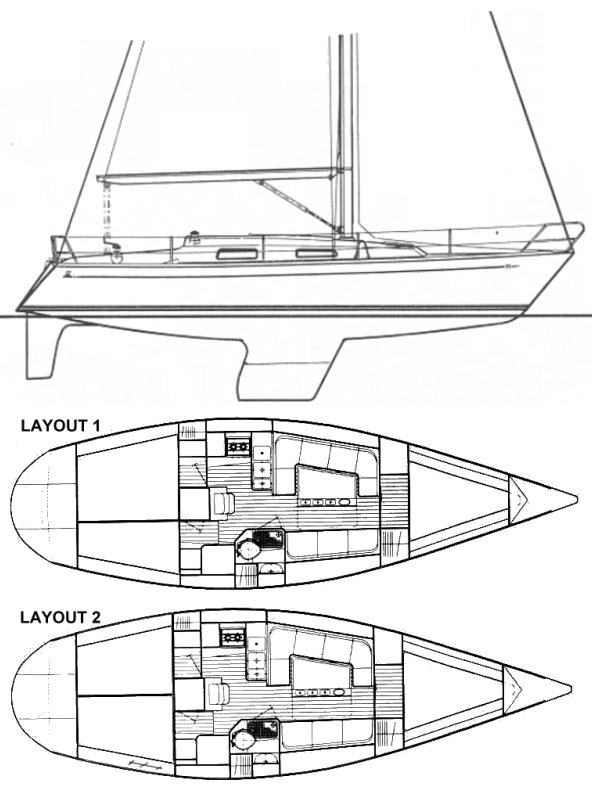

The Omega 36 is a 36.09ft fractional sloop designed by Ron Holland and built in fiberglass between 1985 and 1991.
210 units have been built.
The Omega 36 is a light sailboat which is a high performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Omega 36 | ||
| Length | 36.09 ft | ||
| Beam | 11.02 ft | ||
| Draft | 5.58 ft | ||
| Country | Germany (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 21.37 | ||
| Ballast / displ. | 37.84 % | ||
| Displ. / length | 185.54 | ||
| Comfort ratio | 22.33 | ||
| Capsize | 1.97 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 30.02 ft | ||
| Maximum draft | 5.58 ft | ||
| Displacement | 11244 lbs | ||
| Ballast | 4255 lbs | ||
| Hull speed | 7.34 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 668 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 311.61 sq.ft | ||
| Sail area main | 356.66 sq.ft | ||
| I | 42.98 ft | ||
| J | 14.50 ft | ||
| P | 46.26 ft | ||
| E | 15.42 ft |
Engine
| Nb engines | 1 | ||
| Total power | 27 HP | ||
| Fuel capacity | 21 gals |
Accommodations
| Water capacity | 39 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Ron Holland | ||
| First built | 1985 | ||
| Last built | 1991 | ||
| Number built | 210 |
