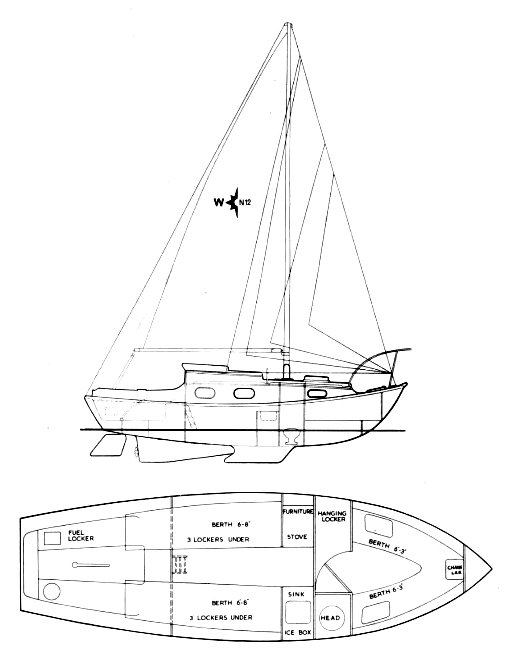

Nomad 22 westerly
The Nomad 22 westerly is a 22.25ft masthead sloop designed by Denys A. Rayner and built in fiberglass by Westerly Marine Construction Ltd. between 1967 and 1969.
267 units have been built.
The Nomad 22 westerly is a moderate weight sailboat which is under powered. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
See all sailboats built by Westerly Marine Construction Ltd.
Nomad 22 westerly for sale elsewhere on the web:
Main features
| Model | Nomad 22 westerly | ||
| Length | 22.25 ft | ||
| Beam | 7.42 ft | ||
| Draft | 2.25 ft | ||
| Country | United Kingdom (Europe) | ||
| Estimated price | $ 0 | ?? |
Login or register to personnalize this screen.
You will be able to pin external links of your choice.
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.96 | ||
| Ballast / displ. | 33.33 % | ||
| Displ. / length | 228.34 | ||
| Comfort ratio | 17.28 | ||
| Capsize | 2.03 |
Hull
| Hull type | Monohull twin Keel | ||
| Construction | Fiberglass | ||
| Waterline length | 18.33 ft | ||
| Maximum draft | 2.25 ft | ||
| Displacement | 3150 lbs | ||
| Ballast | 1050 lbs | ||
| Hull speed | 5.74 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 187 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 80.50 sq.ft | ||
| Sail area main | 106.03 sq.ft | ||
| I | 23 ft | ||
| J | 7 ft | ||
| P | 21.75 ft | ||
| E | 9.75 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Westerly Marine Construction Ltd. | ||
| Designer | Denys A. Rayner | ||
| First built | 1967 | ||
| Last built | 1969 | ||
| Number built | 267 |
