The Najad 400 405 is a 40.03ft fractional sloop designed by Judel/Vrolijk and built in fiberglass by Najad Yachts (SWE) between 2003 and 2009.
The Najad 400 405 is a moderate weight sailboat which is slightly under powered. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is average. There is a good water supply range.
Main features
| Model | Najad 400 405 | ||
| Length | 40.03 ft | ||
| Beam | 12.63 ft | ||
| Draft | 6.56 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 244000 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.22 | ||
| Ballast / displ. | 32.79 % | ||
| Displ. / length | 298.85 | ||
| Comfort ratio | 39.43 | ||
| Capsize | 1.69 |
Hull
| Hull type | Monohull fin keel with rudder on partial skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 34.25 ft | ||
| Maximum draft | 6.56 ft | ||
| Displacement | 26896.36 lbs | ||
| Ballast | 8818.48 lbs | ||
| Hull speed | 7.84 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging

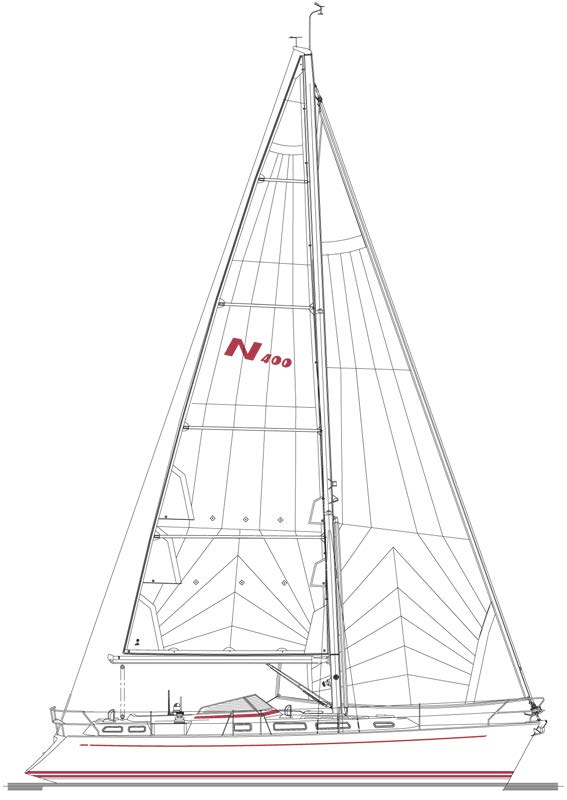

| Rigging | Fractional Sloop | ||
| Sail area (100%) | 850.35 sq.ft | ||
| Air draft | 56.59 ft | ||
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 54 HP | ||
| Fuel capacity | 61 gals |
Accommodations
| Water capacity | 145 gals | ||
| Headroom | 6.46 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Najad Yachts (SWE) | ||
| Designer | Judel/Vrolijk | ||
| First built | 2003 | ||
| Last built | 2009 | ||
| Number built | 0 | ?? |
