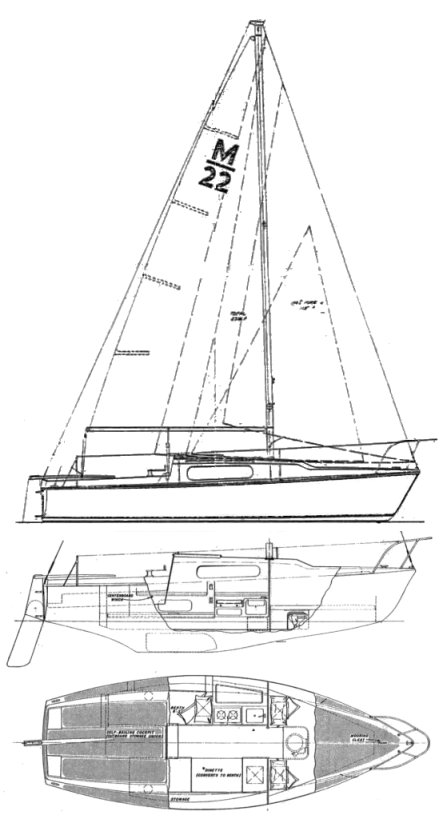

The Morgan 22 is a 21.42ft masthead sloop designed by Charles Morgan and built in fiberglass by Morgan Yachts between 1968 and 1971.
The Morgan 22 is a light sailboat which is a good performer. It is very stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | Morgan 22 | ||
| Length | 21.42 ft | ||
| Beam | 8 ft | ||
| Draft | 1.80 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 19.69 | ||
| Ballast / displ. | 51.85 % | ||
| Displ. / length | 143.45 | ||
| Comfort ratio | 12.66 | ||
| Capsize | 2.30 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 20.33 ft | ||
| Maximum draft | 4.92 ft | ||
| Displacement | 2700 lbs | ||
| Ballast | 1400 lbs | ||
| Hull speed | 6.04 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 238 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 114.75 sq.ft | ||
| Sail area main | 123.38 sq.ft | ||
| I | 27 ft | ||
| J | 8.50 ft | ||
| P | 23.50 ft | ||
| E | 10.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Morgan Yachts | ||
| Designer | Charles Morgan | ||
| First built | 1968 | ||
| Last built | 1971 | ||
| Number built | 0 | ?? |
