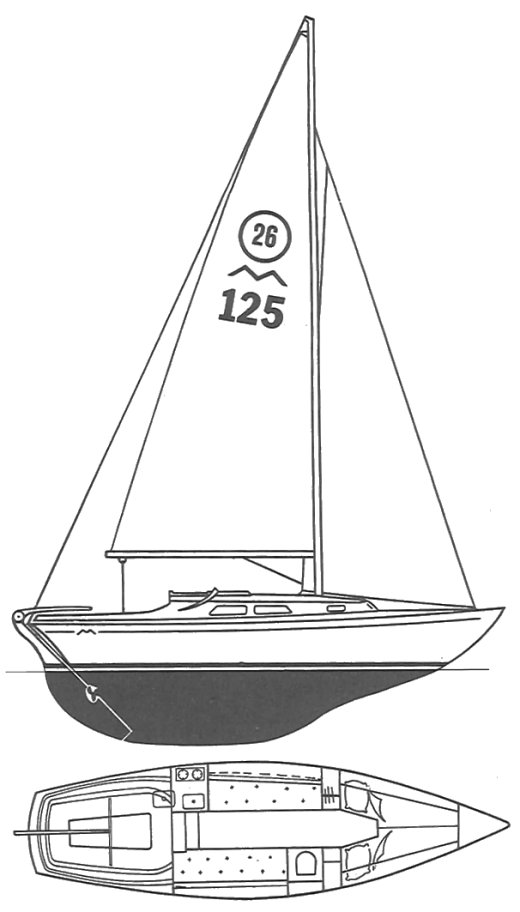

The Marieholm 26 is a 26.25ft fractional sloop designed by Tord Sundén and built in fiberglass by Marieholm Boats (SWE) between 1976 and 1987.
260 units have been built.
The Marieholm 26 is a moderate weight sailboat which is slightly under powered. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a coastal cruiser.
Main features
| Model | Marieholm 26 | ||
| Length | 26.25 ft | ||
| Beam | 7.22 ft | ||
| Draft | 4.07 ft | ||
| Country | Sweden (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 14.97 | ||
| Ballast / displ. | 41.64 % | ||
| Displ. / length | 299.82 | ||
| Comfort ratio | 27.81 | ||
| Capsize | 1.64 |
Hull
| Hull type | Monohull long keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 20.17 ft | ||
| Maximum draft | 4.07 ft | ||
| Displacement | 5511 lbs | ||
| Ballast | 2295 lbs | ||
| Hull speed | 6.02 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 291 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 120.96 sq.ft | ||
| Sail area main | 169.65 sq.ft | ||
| I | 28.80 ft | ||
| J | 8.40 ft | ||
| P | 29 ft | ||
| E | 11.70 ft |
Engine
| Nb engines | 1 | ||
| Total power | 7.50 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Marieholm Boats (SWE) | ||
| Designer | Tord Sundén | ||
| First built | 1976 | ||
| Last built | 1987 | ||
| Number built | 260 |
