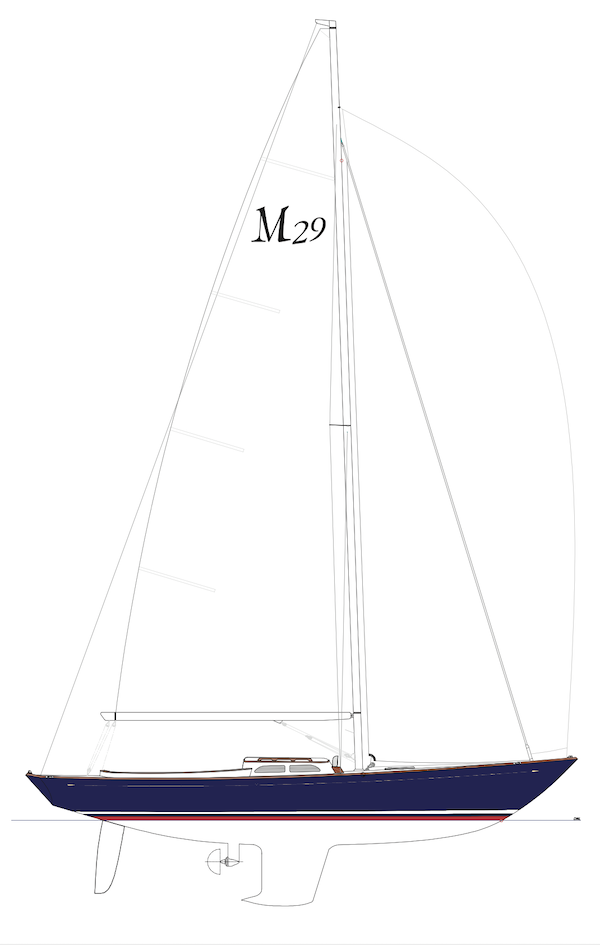

The M29 morris is a 29.17ft fractional sloop designed by Sparkman & Stephens and built in carbon fiber or composite by Morris Yachts since 2009.
The M29 morris is a moderate weight sailboat which is a very high performer. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally very small.
Main features
| Model | M29 morris | ||
| Length | 29.17 ft | ||
| Beam | 7.33 ft | ||
| Draft | 4.50 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 23.69 | ||
| Ballast / displ. | 44.75 % | ||
| Displ. / length | 216.10 | ||
| Comfort ratio | 20.40 | ||
| Capsize | 1.80 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Carbon fiber or composite | ||
| Waterline length | 20.83 ft | ||
| Maximum draft | 4.50 ft | ||
| Displacement | 4375 lbs | ||
| Ballast | 1958 lbs | ||
| Hull speed | 6.12 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 395 sq.ft | ||
| Air draft | 42.17 ft | ||
| Sail area fore | 152.09 sq.ft | ||
| Sail area main | 225 sq.ft | ||
| I | 33.50 ft | ||
| J | 9.08 ft | ||
| P | 36 ft | ||
| E | 12.50 ft |
Engine
| Nb engines | 1 | ||
| Total power | 14 HP | ||
| Fuel capacity | 8 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Morris Yachts | ||
| Designer | Sparkman & Stephens | ||
| First built | 2009 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
