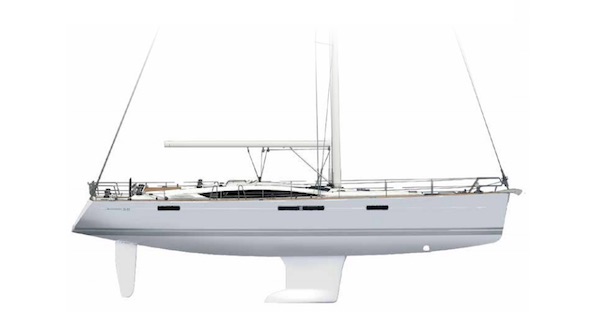

The Jeanneau yachts 58 is a 58.33ft fractional sloop designed by Briand Yacht Design and built in fiberglass by Jeanneau (FRA) since 2016.
The Jeanneau yachts 58 is a light sailboat which is a good performer. It is not stiff and has a good righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is good. There is an excellent water supply range.
Main features
| Model | Jeanneau yachts 58 | ||
| Length | 58.33 ft | ||
| Beam | 16.40 ft | ||
| Draft | 8.20 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 19.31 | ||
| Ballast / displ. | 28.44 % | ||
| Displ. / length | 166.88 | ||
| Comfort ratio | 33.48 | ||
| Capsize | 1.82 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 50.20 ft | ||
| Maximum draft | 8.20 ft | ||
| Displacement | 47289 lbs | ||
| Ballast | 13448 lbs | ||
| Hull speed | 9.49 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 1571 sq.ft | ||
| Air draft | 79.33 ft | ||
| Sail area fore | 755.14 sq.ft | ||
| Sail area main | 674.84 sq.ft | ||
| I | 68.90 ft | ||
| J | 21.92 ft | ||
| P | 64.27 ft | ||
| E | 21 ft |
Engine
| Nb engines | 1 | ||
| Total power | 150 HP | ||
| Fuel capacity | 111 gals |
Accommodations
| Water capacity | 246 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Jeanneau (FRA) | ||
| Designer | Briand Yacht Design | ||
| First built | 2016 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
