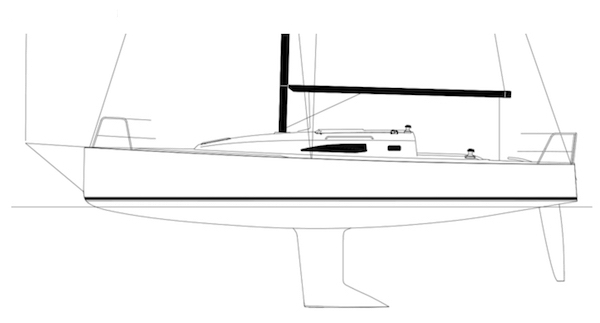

The J99 is a 32.61ft fractional sloop designed by Alan Johnstone and built in carbon fiber or composite by J Boats since 2019.
The J99 is a light sailboat which is a very high performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat. The fuel capacity is originally very small. There is a very short water supply range.
Main features
| Model | J99 | ||
| Length | 32.61 ft | ||
| Beam | 11.18 ft | ||
| Draft | 6.54 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 22.15 | ||
| Ballast / displ. | 39.81 % | ||
| Displ. / length | 160.59 | ||
| Comfort ratio | 17.52 | ||
| Capsize | 2.20 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Carbon fiber or composite | ||
| Waterline length | 28.60 ft | ||
| Maximum draft | 6.54 ft | ||
| Displacement | 8415 lbs | ||
| Ballast | 3350 lbs | ||
| Hull speed | 7.17 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 571 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 272.36 sq.ft | ||
| Sail area main | 298.87 sq.ft | ||
| I | 43.37 ft | ||
| J | 12.56 ft | ||
| P | 41.80 ft | ||
| E | 14.30 ft |
Engine
| Nb engines | 1 | ||
| Total power | 20 HP | ||
| Fuel capacity | 13 gals |
Accommodations
| Water capacity | 26 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | J Boats | ||
| Designer | Alan Johnstone | ||
| First built | 2019 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
