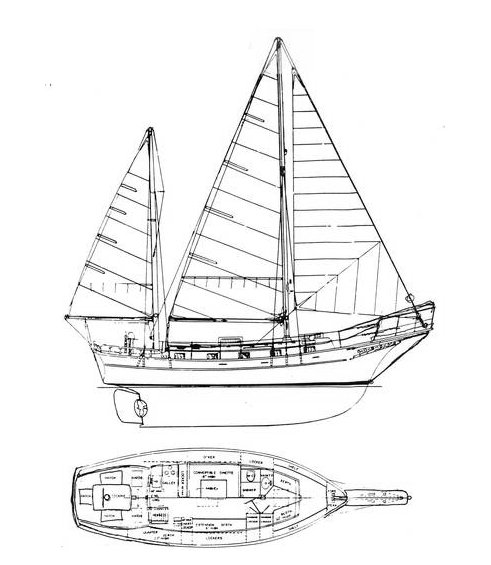

The Island trader 38 is a 37.33ft masthead ketch designed by Hugh Angleman and built in fiberglass between 1975 and 1988.
200 units have been built.
The Island trader 38 is a very heavy sailboat which is under powered. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat.
Main features
| Model | Island trader 38 | ||
| Length | 37.33 ft | ||
| Beam | 12 ft | ||
| Draft | 4.50 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 10.27 | ||
| Ballast / displ. | 26.52 % | ||
| Displ. / length | 422.41 | ||
| Comfort ratio | 45.97 | ||
| Capsize | 1.62 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Fiberglass | ||
| Waterline length | 30.33 ft | ||
| Maximum draft | 4.50 ft | ||
| Displacement | 26400 lbs | ||
| Ballast | 7000 lbs | ||
| Hull speed | 7.38 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 567 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 304.15 sq.ft | ||
| Sail area main | 209.48 sq.ft | ||
| I | 38.50 ft | ||
| J | 15.80 ft | ||
| P | 31.50 ft | ||
| E | 13.30 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Hugh Angleman | ||
| First built | 1975 | ||
| Last built | 1988 | ||
| Number built | 200 |
