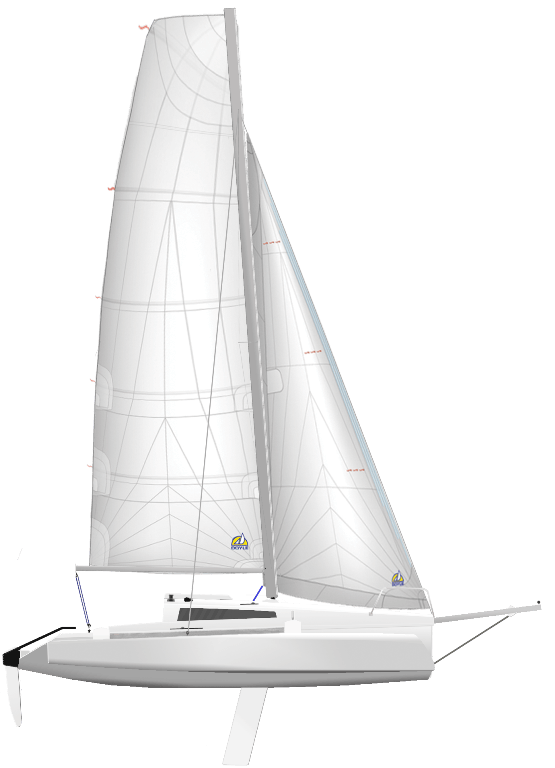

The Corsair 760 is a 24.25ft frac. sloop (rotating spar) designed by Francois Perus and built in fiberglass sandwich e-glass by Corsair Marine since 2018.
It accomodates 2 people in 1 cabins plus salon.
The Corsair 760 is an ultralight sailboat which is a very high performer.
Main features
| Model | Corsair 760 | ||
| Length | 24.25 ft | ||
| Beam | 17.91 ft | ||
| Draft | 0.98 ft | ||
| Country | Viet Nam (Asia) | ||
| Estimated price | $ 76500 |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 40.09 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 70.95 | ||
| Comfort ratio | 2.92 | ||
| Capsize | 5.60 |
Hull
| Hull type | Trimaran daggerboard | ||
| Construction | Fiberglass sandwich E-Glass | ||
| Waterline length | 23.62 ft | ||
| Maximum draft | 5.25 ft | ||
| Displacement | 2094.39 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 6.51 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Frac. Sloop (Rotating Spar) | ||
| Sail area (100%) | 410.10 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 4 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 1 | ||
| Nb of berths | 2 | ||
| Nb heads | 0 |
Builder data
| Builder | Corsair Marine | ||
| Designer | Francois Perus | ||
| First built | 2018 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
