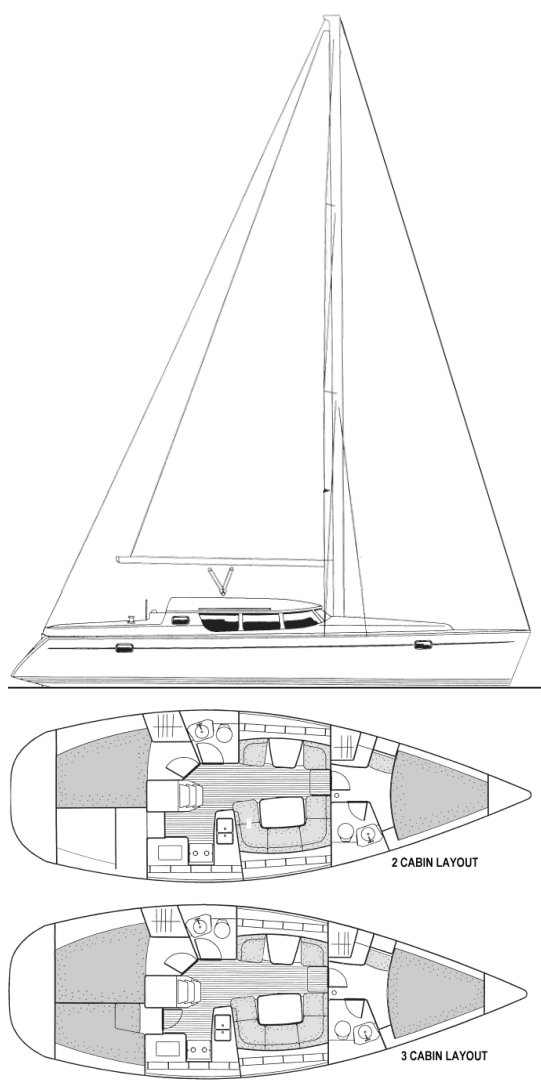

The Sun odyssey 40 ds jeanneau is a 40.0ft masthead sloop designed by Daniel Andrieu and built in fiberglass by Jeanneau (FRA) between 2000 and 2004.
The Sun odyssey 40 ds jeanneau is a light sailboat which is a reasonably good performer. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a good water supply range.
Main features
Model | Sun odyssey 40 ds jeanneau | ||
Length | 40 ft | ||
Beam | 13 ft | ||
Draft | 6.42 ft | ||
Country | France (Europe) | ||
Estimated price | $ 0 | ?? |
Ratios
Sail area / displ. | 17.39 | ||
Ballast / displ. | 33.35 % | ||
Displ. / length | 191.41 | ||
Comfort ratio | 22.81 | ||
Capsize | 2.07 |
Hull
Hull type | Monohull fin keel with spade rudder | ||
Construction | Fiberglass | ||
Waterline length | 33.33 ft | ||
Maximum draft | 6.42 ft | ||
Displacement | 15875 lbs | ||
Ballast | 5295 lbs | ||
Hull speed | 7.74 knots |
Rigging
Rigging | Masthead Sloop | ||
Sail area (100%) | 684 sq.ft | ||
Air draft | 0 ft | ?? | |
Sail area fore | 346.26 sq.ft | ||
Sail area main | 337.29 sq.ft | ||
I | 49.75 ft | ||
J | 13.92 ft | ||
P | 42.83 ft | ||
E | 15.75 ft |
Engine
Nb engines | 1 | ||
Total power | 39 HP | ||
Fuel capacity | 48 gals |
Accommodations
Water capacity | 112 gals | ||
Headroom | 0 ft | ||
Nb of cabins | 0 | ||
Nb of berths | 0 | ||
Nb heads | 0 |
Builder data
Builder | Jeanneau (FRA) | ||
Designer | Daniel Andrieu | ||
First built | 2000 | ||
Last built | 2004 | ||
Number built | 0 | ?? |
