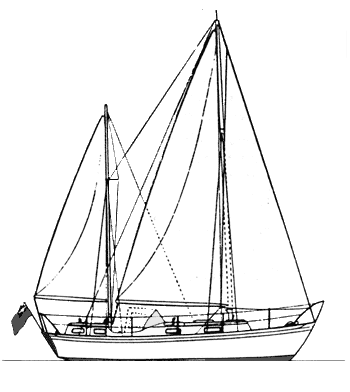

The Seadog 30 is a 30.0ft masthead ketch designed by Reg Freeman and built in fiberglass between 1966 and 1974.
130 units have been built.
The Seadog 30 is a very heavy sailboat which is slightly under powered. It is reasonably stable / stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat.
Main features
| Model | Seadog 30 | ||
| Length | 30 ft | ||
| Beam | 9.50 ft | ||
| Draft | 3.50 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 14.90 | ||
| Ballast / displ. | 30.43 % | ||
| Displ. / length | 415.94 | ||
| Comfort ratio | 38.46 | ||
| Capsize | 1.62 |
Hull
| Hull type | Monohull triple Keel | ||
| Construction | Fiberglass | ||
| Waterline length | 24 ft | ||
| Maximum draft | 3.50 ft | ||
| Displacement | 12880 lbs | ||
| Ballast | 3920 lbs | ||
| Hull speed | 6.56 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 510 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | Reg Freeman | ||
| First built | 1966 | ||
| Last built | 1974 | ||
| Number built | 130 |
