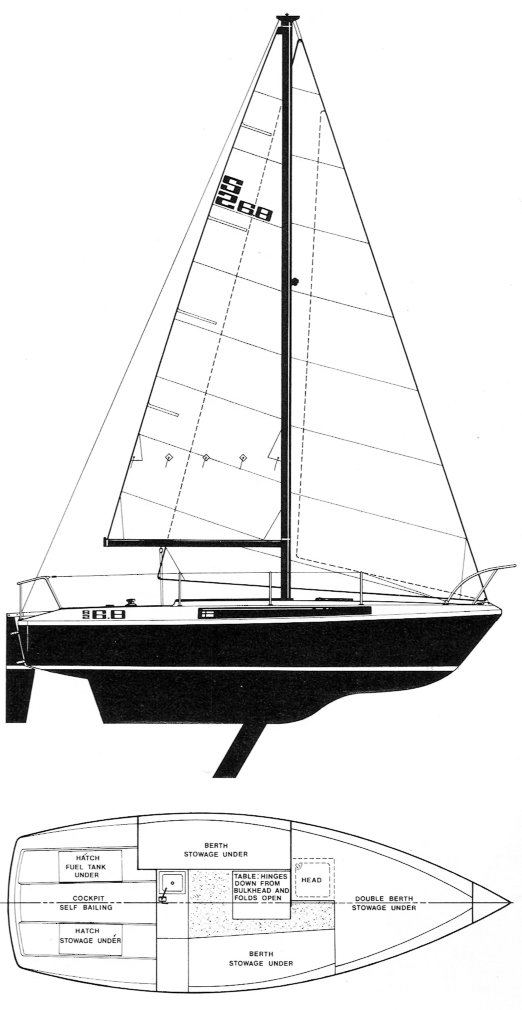

The S2 68 is a 22.33ft masthead sloop designed by Arthur Edmonds/Don Wennersten and built in fiberglass by S2 Yachts (USA) between 1976 and 1979.
150 units have been built.
The S2 68 is a moderate weight sailboat which is a reasonably good performer. It is stable / stiff and has a low righting capability if capsized. It is best suited as a day-boat.
Main features
| Model | S2 68 | ||
| Length | 22.33 ft | ||
| Beam | 8 ft | ||
| Draft | 2 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 17.12 | ||
| Ballast / displ. | 37.93 % | ||
| Displ. / length | 212.99 | ||
| Comfort ratio | 14.42 | ||
| Capsize | 2.25 |
Hull
| Hull type | Monohull fin keel with transom hung rudder | ||
| Construction | Fiberglass | ||
| Waterline length | 18.25 ft | ||
| Maximum draft | 2 ft | ||
| Displacement | 2900 lbs | ||
| Ballast | 1100 lbs | ||
| Hull speed | 5.72 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 217 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 121.49 sq.ft | ||
| Sail area main | 95.20 sq.ft | ||
| I | 26.70 ft | ||
| J | 9.10 ft | ||
| P | 23.80 ft | ||
| E | 8 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | S2 Yachts (USA) | ||
| Designer | Arthur Edmonds/Don Wennersten | ||
| First built | 1976 | ||
| Last built | 1979 | ||
| Number built | 150 |
