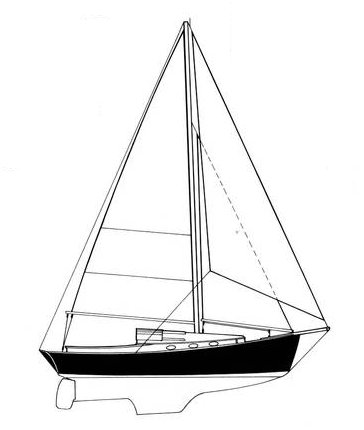

The Mystic 30 is a 33.67ft cutter designed by Peter Legnos and built in fiberglass by LBI (USA) between 1978 and 1982.
24 units have been built.
The Mystic 30 is a moderate weight sailboat which is a good performer. It is reasonably stable / stiff and has a good righting capability if capsized. It is best suited as a coastal cruiser. The fuel capacity is originally small. There is a very short water supply range.
Main features
| Model | Mystic 30 | ||
| Length | 33.67 ft | ||
| Beam | 10.25 ft | ||
| Draft | 4.33 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.83 | ||
| Ballast / displ. | 31.58 % | ||
| Displ. / length | 260.96 | ||
| Comfort ratio | 23.77 | ||
| Capsize | 1.94 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 25.33 ft | ||
| Maximum draft | 4.33 ft | ||
| Displacement | 9500 lbs | ||
| Ballast | 3000 lbs | ||
| Hull speed | 6.74 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Cutter | ||
| Sail area (100%) | 526 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 275.25 sq.ft | ||
| Sail area main | 218.28 sq.ft | ||
| I | 36.70 ft | ||
| J | 15 ft | ||
| P | 31.75 ft | ||
| E | 13.75 ft |
Engine
| Nb engines | 1 | ||
| Total power | 12 HP | ||
| Fuel capacity | 22 gals |
Accommodations
| Water capacity | 37 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | LBI (USA) | ||
| Designer | Peter Legnos | ||
| First built | 1978 | ||
| Last built | 1982 | ||
| Number built | 24 |
