The B30 brenta is a 29.27ft fractional sloop designed by Luca Brenta and built in carbon fiber or composite by B-Yachts srl since 2004.
The B30 brenta is a light sailboat which is a very high performer. It is very stable / stiff and has an excellent righting capability if capsized. It is best suited as a racing boat. The fuel capacity is originally very small.
Main features
| Model | B30 brenta | ||
| Length | 29.27 ft | ||
| Beam | 7.61 ft | ||
| Draft | 6.23 ft | ||
| Country | Italy (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 30.43 | ||
| Ballast / displ. | 47.82 % | ||
| Displ. / length | 127.62 | ||
| Comfort ratio | 19.41 | ||
| Capsize | 1.77 |
Hull
| Hull type | Monohull fin keel with bulb and spade rudder | ||
| Construction | Carbon fiber or composite | ||
| Waterline length | 26.08 ft | ||
| Maximum draft | 6.23 ft | ||
| Displacement | 5071 lbs | ||
| Ballast | 2425 lbs | ||
| Hull speed | 6.84 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging

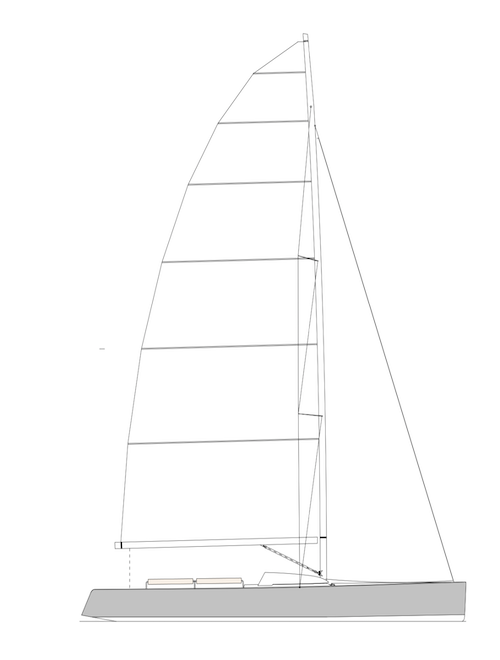

| Rigging | Fractional Sloop | ||
| Sail area (100%) | 559.72 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 12.20 HP | ||
| Fuel capacity | 11 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | B-Yachts srl | ||
| Designer | Luca Brenta | ||
| First built | 2004 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
