Hinckley 49
The Hinckley 49 is a 49.0ft masthead ketch designed by H. Hinckley and built in fiberglass by Hinckley Yachts since 1971.
23 units have been built.
The Hinckley 49 is a moderate weight sailboat which is under powered. It is not stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat.
Hinckley 49 for sale elsewhere on the web:
Main features
| Model | Hinckley 49 | ||
| Length | 49 ft | ||
| Beam | 13.42 ft | ||
| Draft | 5.67 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
Login or register to personnalize this screen.
You will be able to pin external links of your choice.
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 13.11 | ||
| Ballast / displ. | 21.05 % | ||
| Displ. / length | 256.89 | ||
| Comfort ratio | 43.01 | ||
| Capsize | 1.60 |
Hull
| Hull type | Monohull keel with centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 40.42 ft | ||
| Maximum draft | 10 ft | ||
| Displacement | 38000 lbs | ||
| Ballast | 8000 lbs | ||
| Hull speed | 8.52 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Ketch | ||
| Sail area (100%) | 922 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 460.60 sq.ft | ||
| Sail area main | 322.14 sq.ft | ||
| I | 49 ft | ||
| J | 18.80 ft | ||
| P | 40.70 ft | ||
| E | 15.83 ft |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Hinckley Yachts | ||
| Designer | H. Hinckley | ||
| First built | 1971 | ||
| Last built | 0 | ?? | |
| Number built | 23 |

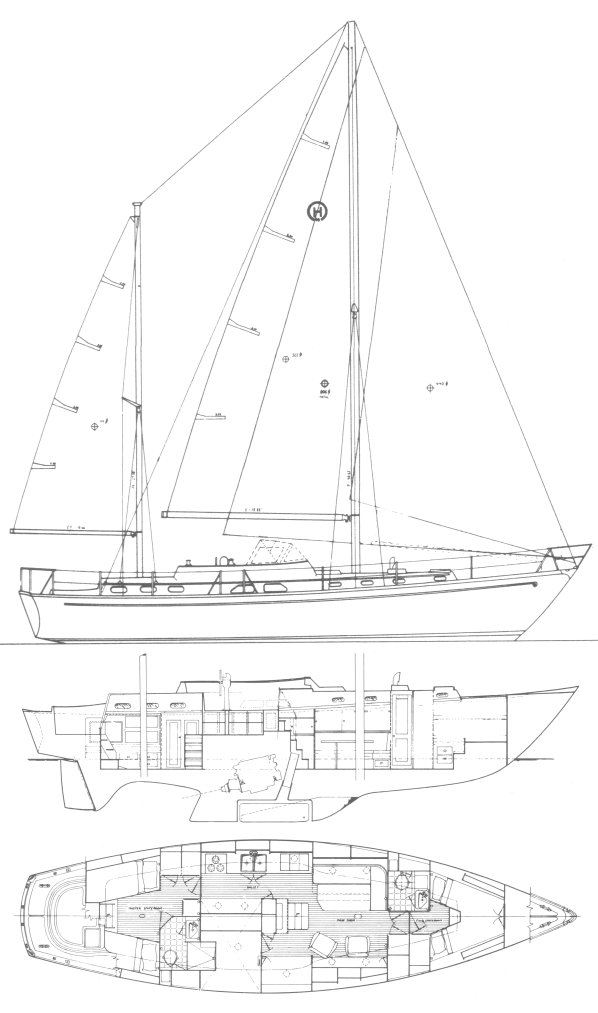

Other photos
