Highlander

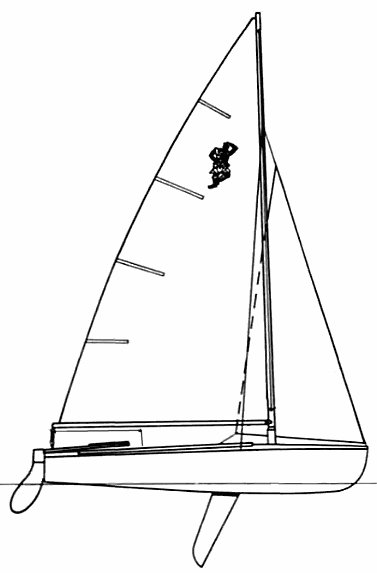

The Highlander is a 20.0ft fractional sloop designed by Sandy Douglas and built in wood or fiberglass by Douglass & McLeod since 1951.

2000 units have been built.

The Highlander is an ultralight sailboat which is a very high performer. It is reasonably stable / stiff and has a low righting capability if capsized. It is best suited as a racing boat.

Highlander for sale elsewhere on the web:

Main features


Model Highlander
Length 20 ft
Beam 6.67 ft
Draft 0.67 ft
Country United states (North America)
Estimated price $ 0 ??

Login or register to personnalize this screen.

You will be able to pin external links of your choice.

See how Sailboatlab works in video

Ratios


Sail area / displ. 40.83
Ballast / displ. 0 %
Displ. / length 48.69
Comfort ratio 5.18
Capsize 2.84

Hull


Hull type Centerboard Dinghy
Construction Wood or fiberglass
Waterline length 19.67 ft
Maximum draft 5.60 ft
Displacement 830 lbs
Ballast 0 lbs
Hull speed 5.94 knots

We help you build your own hydraulic steering system - Lecomble & Schmitt

Rigging


Rigging Fractional Sloop
Sail area (100%) 225 sq.ft
Air draft 0 ft ??
Sail area fore 59.10 sq.ft
Sail area main 169.44 sq.ft
I 20 ft
J 5.91 ft
P 24.79 ft
E 13.67 ft

Engine


Nb engines 1
Total power 0 HP
Fuel capacity 0 gals

Accommodations


Water capacity 0 gals
Headroom 0 ft
Nb of cabins 0
Nb of berths 0
Nb heads 0

Builder data


Builder Douglass & McLeod
Designer Sandy Douglas
First built 1951
Last built 0 ??
Number built 2000
