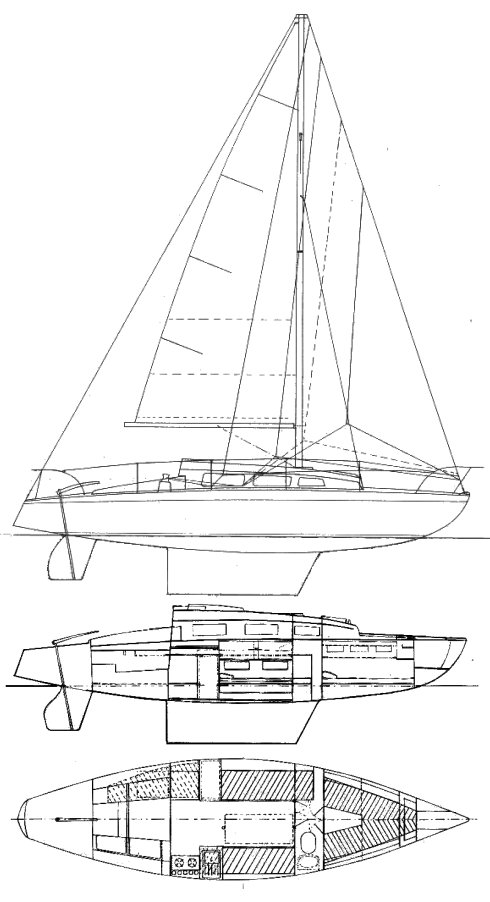

The Helios is a 30.54ft masthead sloop designed by G. Moreau and built in fiberglass by La Prairie (FRANCE) since 1967.
The Helios is a heavy sailboat which is under powered. It is not stiff and has an excellent righting capability if capsized. It is best suited as a bluewater cruising boat.
Main features
| Model | Helios | ||
| Length | 30.54 ft | ||
| Beam | 8.20 ft | ||
| Draft | 3.94 ft | ||
| Country | France (Europe) | ||
| Estimated price | $ 0 | ?? |
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 7.54 | ||
| Ballast / displ. | 22.50 % | ||
| Displ. / length | 315.69 | ||
| Comfort ratio | 35.35 | ||
| Capsize | 1.54 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 24.02 ft | ||
| Maximum draft | 3.94 ft | ||
| Displacement | 9800 lbs | ||
| Ballast | 2205 lbs | ||
| Hull speed | 6.57 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Masthead Sloop | ||
| Sail area (100%) | 215 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | La Prairie (FRANCE) | ||
| Designer | G. Moreau | ||
| First built | 1967 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
