Gozzard 36
The Gozzard 36 is a 36.0ft cutter designed by Ted Gozzard and built in fiberglass by Gozzard Yachts (North Castle Marine Ltd.) between 1985 and 1998.
90 units have been built.
It accomodates 5 people in 2 cabins plus salon.
The Gozzard 36 is a heavy sailboat which is a high performer. It is stable / stiff and has a good righting capability if capsized. It is best suited as a fast cruiser. The fuel capacity is originally small. There is a good water supply range.
See all sailboats built by Gozzard Yachts (North Castle Marine Ltd.)
Gozzard 36 for sale elsewhere on the web:
Main features
| Model | Gozzard 36 | ||
| Length | 36 ft | ||
| Beam | 12.50 ft | ||
| Draft | 4.75 ft | ||
| Country | Canada (North America) | ||
| Estimated price | $ 0 | ?? |
Login or register to personnalize this screen.
You will be able to pin external links of your choice.
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 20.35 | ||
| Ballast / displ. | 37.74 % | ||
| Displ. / length | 315.62 | ||
| Comfort ratio | 30.86 | ||
| Capsize | 1.91 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 29.50 ft | ||
| Maximum draft | 4.75 ft | ||
| Displacement | 18150 lbs | ||
| Ballast | 6850 lbs | ||
| Hull speed | 7.28 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Cutter | ||
| Sail area (100%) | 875 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 33 HP | ||
| Fuel capacity | 45 gals |
Accommodations
| Water capacity | 100 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 2 | ||
| Nb of berths | 5 | ||
| Nb heads | 1 |
Builder data
| Builder | Gozzard Yachts (North Castle Marine Ltd.) | ||
| Designer | Ted Gozzard | ||
| First built | 1985 | ||
| Last built | 1998 | ||
| Number built | 90 |

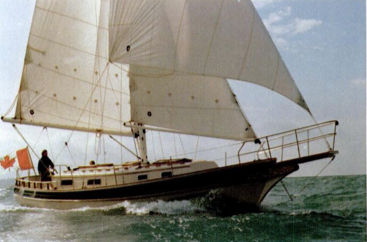

Other photos
