Cork harbor one design

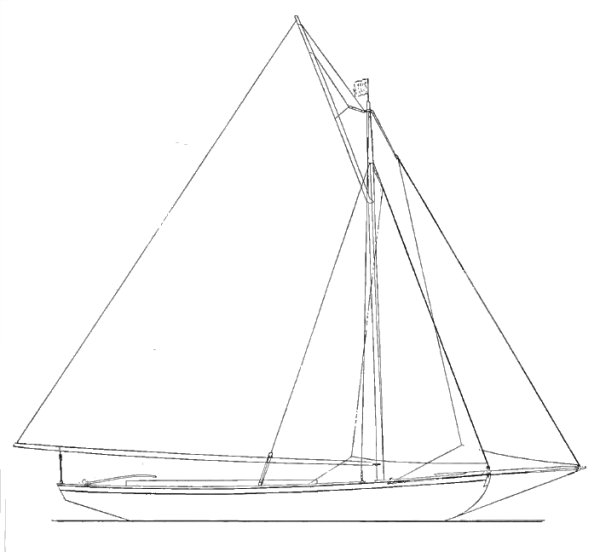

The Cork harbor one design is a 29.0ft gaff head cutter designed by William Fife III and built in wood since 1896.
10 units have been built.
The Cork harbor one design is a very heavy sailboat which is a good performer. It is not stiff and has an excellent righting capability if capsized. It is best suited as a heavy bluewater cruising boat.
Cork harbor one design for sale elsewhere on the web:
Main features
| Model | Cork harbor one design | ||
| Length | 29 ft | ||
| Beam | 7.25 ft | ||
| Draft | 4.58 ft | ||
| Country | ?? | ||
| Estimated price | $ 0 | ?? |
Login or register to personnalize this screen.
You will be able to pin external links of your choice.
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 18.38 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 481.14 | ||
| Comfort ratio | 54.43 | ||
| Capsize | 1.27 |
Hull
| Hull type | Monohull long keel | ||
| Construction | Wood | ||
| Waterline length | 22.33 ft | ||
| Maximum draft | 4.58 ft | ||
| Displacement | 12000 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 6.33 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Gaff Head Cutter | ||
| Sail area (100%) | 600 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | ?? | ||
| Designer | William Fife III | ||
| First built | 1896 | ||
| Last built | 0 | ?? | |
| Number built | 10 |
