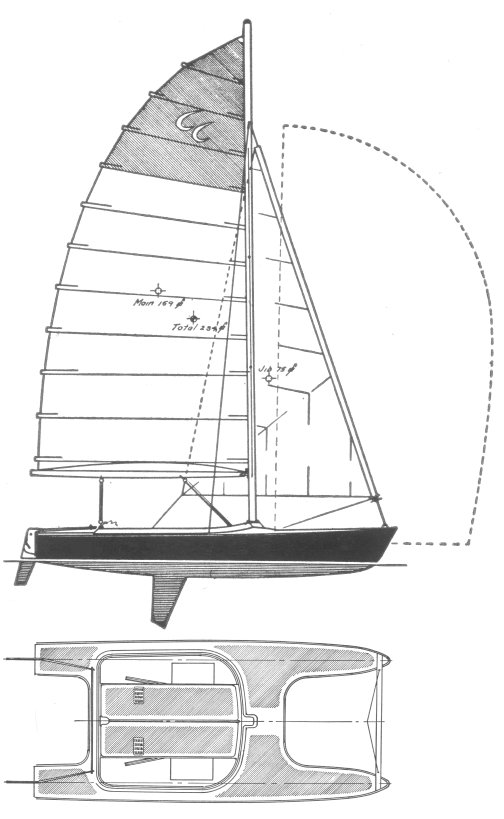

Catalina catamaran
The Catalina catamaran is a 17.04ft fractional sloop designed by Seymour Paul and built in fiberglass by Schock W.D. between 1960 and 1964.
54 units have been built.
The Catalina catamaran is an ultralight sailboat which is a very high performer.
Catalina catamaran for sale elsewhere on the web:
Main features
| Model | Catalina catamaran | ||
| Length | 17.04 ft | ||
| Beam | 7.95 ft | ||
| Draft | 0.80 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 0 | ?? |
Login or register to personnalize this screen.
You will be able to pin external links of your choice.
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 54.86 | ||
| Ballast / displ. | 0 % | ||
| Displ. / length | 56.15 | ||
| Comfort ratio | 3.31 | ||
| Capsize | 3.85 |
Hull
| Hull type | Catamaran twin centerboard | ||
| Construction | Fiberglass | ||
| Waterline length | 16.50 ft | ||
| Maximum draft | 2 ft | ||
| Displacement | 565 lbs | ||
| Ballast | 0 lbs | ||
| Hull speed | 5.44 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Fractional Sloop | ||
| Sail area (100%) | 234 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 0 sq.ft | ?? | |
| Sail area main | 0 sq.ft | ?? | |
| I | 0 ft | ?? | |
| J | 0 ft | ?? | |
| P | 0 ft | ?? | |
| E | 0 ft | ?? |
Engine
| Nb engines | 1 | ||
| Total power | 0 HP | ||
| Fuel capacity | 0 gals |
Accommodations
| Water capacity | 0 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Schock W.D. | ||
| Designer | Seymour Paul | ||
| First built | 1960 | ||
| Last built | 1964 | ||
| Number built | 54 |
