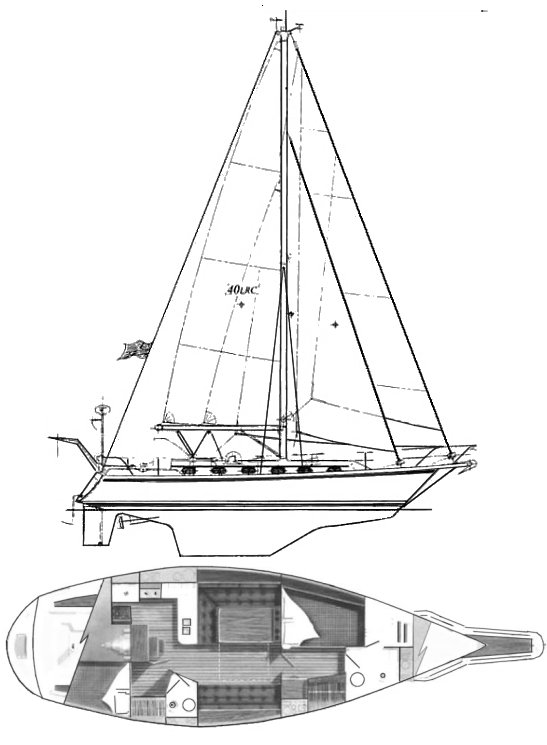

The Caliber 40 lrc is a 40.92ft cutter designed by Michael McCreary and built in fiberglass by Caliber Yachts (USA) since 1995.
The Caliber 40 lrc is a moderate weight sailboat which is slightly under powered. It is very stable / stiff and has a good righting capability if capsized. It is best suited as a bluewater cruising boat. The fuel capacity is excellent. There is a good water supply range.
Main features
| Model | Caliber 40 lrc | ||
| Length | 40.92 ft | ||
| Beam | 12.67 ft | ||
| Draft | 5.08 ft | ||
| Country | United states (North America) | ||
| Estimated price | $ 150000 |
Is this world cruiser right for us ? Youtube
See how Sailboatlab works in video
Ratios
| Sail area / displ. | 15.30 | ||
| Ballast / displ. | 43.98 % | ||
| Displ. / length | 280.90 | ||
| Comfort ratio | 32.39 | ||
| Capsize | 1.82 |
Hull
| Hull type | Monohull fin keel with rudder on skeg | ||
| Construction | Fiberglass | ||
| Waterline length | 32.50 ft | ||
| Maximum draft | 5.08 ft | ||
| Displacement | 21600 lbs | ||
| Ballast | 9500 lbs | ||
| Hull speed | 7.64 knots |
We help you build your own hydraulic steering system - Lecomble & Schmitt
Rigging
| Rigging | Cutter | ||
| Sail area (100%) | 739 sq.ft | ||
| Air draft | 0 ft | ?? | |
| Sail area fore | 435.56 sq.ft | ||
| Sail area main | 303.09 sq.ft | ||
| I | 50.50 ft | ||
| J | 17.25 ft | ||
| P | 45.75 ft | ||
| E | 13.25 ft |
Engine
| Nb engines | 1 | ||
| Total power | 56 HP | ||
| Fuel capacity | 212 gals |
Accommodations
| Water capacity | 179 gals | ||
| Headroom | 0 ft | ||
| Nb of cabins | 0 | ||
| Nb of berths | 0 | ||
| Nb heads | 0 |
Builder data
| Builder | Caliber Yachts (USA) | ||
| Designer | Michael McCreary | ||
| First built | 1995 | ||
| Last built | 0 | ?? | |
| Number built | 0 | ?? |
